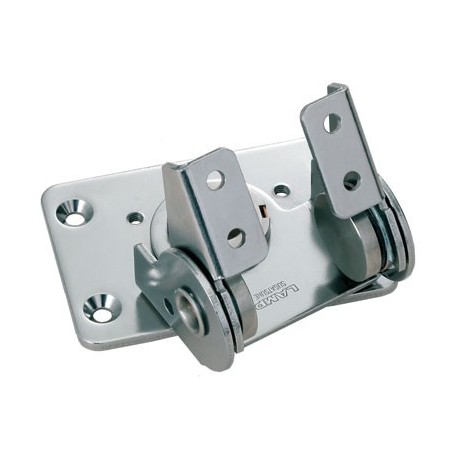

Sugatsune HG-T70S30 Cabinet Stainless Steel Torque Hinge
HG-T70S30
Warning: Last items in stock!
Availability date:
Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Whether you need commercial, architectural, or specialty hinges Sugatsune has you covered. With the Sugatsune HG-T70S30 Torque Hinge (Dual Axis), you'll have the perfect fit for your project.
Torque Hinge (dual Axis), Dual Axis: Free stop at any angle in tilt & swivel, Provides torque stability in both directions, Suitable for monitor screens.
Sugatsune knows the importance of high quality products, and their passion is apparent in every element of their business. People say that seeing is believing, but to actually hold a Sugatsune product, to feel it in your hand as you perform its intended purpose, you'll know you made the right choice. Every detail of Sugatsune's cabinet hardware is fully realized, whether it's their concealed hinges, lid stays, sliding door pulls, stainless steel handles, drawer slides, magnetic catches or latches. So what are you waiting for? A miracle? Unfortunately Sugatsune can't guarantee divine intervention, but their quality and customer service come awfully close.
Item No. | Torque per piece (tilting) | Torque per piece (swiveling) |
---|---|---|
HG-T70S30 | 62 lbs/in ± 15% | 26.6 lbs/in ± 15% |
No. | Part Name | Material | Finish |
---|---|---|---|
1 | Body | 430 S.S. | Polished |
2 | Base | 430 S.S. | Polished |
3 | Bracket | 430 S.S. | Polished |
4 | Spring Washer | Steel | Plain |
5 | Shaft | 303 S.S. | Plain |
6 | Washer | 430 S.S. | Polished |
